mlx_init.c File Reference

#include "MLX42/MLX42_Int.h"

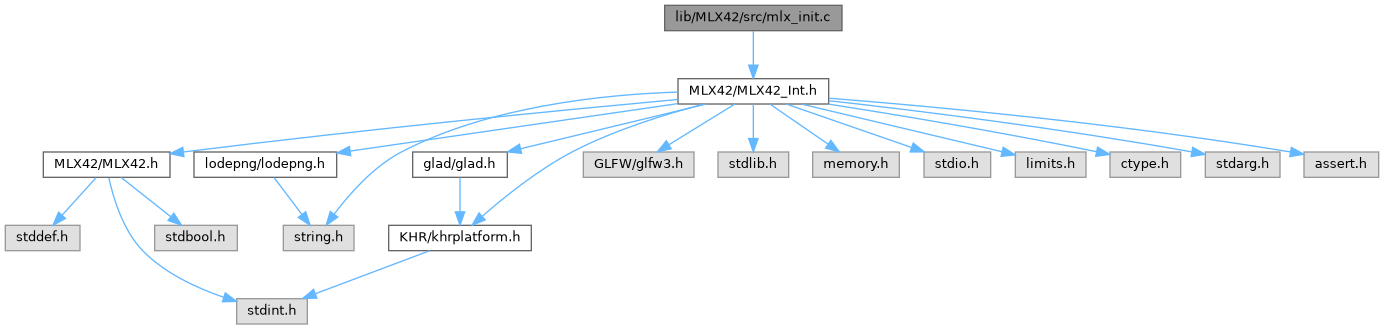

Include dependency graph for mlx_init.c:

Go to the source code of this file.

Functions
static void	framebuffer_callback (GLFWwindow *window, int width, int height)
static bool	mlx_create_buffers (mlx_t *mlx)
static uint32_t	mlx_compile_shader (const char *code, int32_t type)
static bool	mlx_init_render (mlx_t *mlx)
mlx_t *	mlx_init (int32_t width, int32_t height, const char *title, bool resize)
void	mlx_set_setting (mlx_settings_t setting, int32_t value)

Variables
int32_t	mlx_settings [MLX_SETTINGS_MAX] = {false, false, false, true, false}
mlx_errno_t	mlx_errno = MLX_SUCCESS
bool	sort_queue = false

Function Documentation

framebuffer_callback()

static void framebuffer_callback ( GLFWwindow *  window, int  width, int  height  )

static

Definition at line 17 of file mlx_init.c.

{
    (void)window;
    glViewport(0, 0, width, height);
}

Here is the call graph for this function:

Here is the caller graph for this function:

mlx_compile_shader()

static uint32_t mlx_compile_shader ( const char *  code, int32_t  type  )

static

Compiles the given shader source code of a given shader type. Returns shader object via param.

Parameters

code	The shader source code.
Type	GL_VERTEX_SHADER, GL_FRAGMENT_SHADER, GL_GEOMETRY_SHADER, ...

Returns

Non-zero on success, else 0.

Definition at line 78 of file mlx_init.c.

{
    GLuint shader;
    int32_t success;
    char infolog[512] = {0};

    if (!code || (shader = glCreateShader(type)) == 0)
        return (0);

    GLint len = strlen(code);
    glShaderSource(shader, 1, &code, &len);
    glCompileShader(shader);
    glGetShaderiv(shader, GL_COMPILE_STATUS, &success);
    if (!success)
    {
        glGetShaderInfoLog(shader, sizeof(infolog), NULL, infolog);
        fprintf(stderr, "%s", infolog);
        glDeleteShader(shader);
        return (0);
    }
    return (shader);
}

Here is the caller graph for this function:

mlx_create_buffers()

static bool mlx_create_buffers ( mlx_t *  mlx )

static

Definition at line 23 of file mlx_init.c.

{
    mlx_ctx_t* mlxctx = mlx->context;

    mlxctx->zdepth = 0;
    glActiveTexture(GL_TEXTURE0);
    glGenVertexArrays(1, &(mlxctx->vao));
    glGenBuffers(1, &(mlxctx->vbo));
    glBindVertexArray(mlxctx->vao);
    glBindBuffer(GL_ARRAY_BUFFER, mlxctx->vbo);

    // Vertex XYZ coordinates
    glVertexAttribPointer(0, 3, GL_FLOAT, GL_FALSE, sizeof(vertex_t), NULL);
    glEnableVertexAttribArray(0);

    // UV Coordinates
    glVertexAttribPointer(1, 2, GL_FLOAT, GL_FALSE, sizeof(vertex_t), (void *)(sizeof(float) * 3));
    glEnableVertexAttribArray(1);

    // Texture index
    glVertexAttribIPointer(2, 1, GL_BYTE, sizeof(vertex_t), (void *)(sizeof(float) * 5));
    glEnableVertexAttribArray(2);

    glEnable(GL_BLEND);
    glEnable(GL_DEPTH_TEST);
    glBlendFunc(GL_SRC_ALPHA, GL_ONE_MINUS_SRC_ALPHA);

    glUniform1i(glGetUniformLocation(mlxctx->shaderprogram, "Texture0"), 0);
    glUniform1i(glGetUniformLocation(mlxctx->shaderprogram, "Texture1"), 1);
    glUniform1i(glGetUniformLocation(mlxctx->shaderprogram, "Texture2"), 2);
    glUniform1i(glGetUniformLocation(mlxctx->shaderprogram, "Texture3"), 3);
    glUniform1i(glGetUniformLocation(mlxctx->shaderprogram, "Texture4"), 4);
    glUniform1i(glGetUniformLocation(mlxctx->shaderprogram, "Texture5"), 5);
    glUniform1i(glGetUniformLocation(mlxctx->shaderprogram, "Texture6"), 6);
    glUniform1i(glGetUniformLocation(mlxctx->shaderprogram, "Texture7"), 7);
    glUniform1i(glGetUniformLocation(mlxctx->shaderprogram, "Texture8"), 8);
    glUniform1i(glGetUniformLocation(mlxctx->shaderprogram, "Texture9"), 9);
    glUniform1i(glGetUniformLocation(mlxctx->shaderprogram, "Texture10"), 10);
    glUniform1i(glGetUniformLocation(mlxctx->shaderprogram, "Texture11"), 11);
    glUniform1i(glGetUniformLocation(mlxctx->shaderprogram, "Texture12"), 12);
    glUniform1i(glGetUniformLocation(mlxctx->shaderprogram, "Texture13"), 13);
    glUniform1i(glGetUniformLocation(mlxctx->shaderprogram, "Texture14"), 14);
    glUniform1i(glGetUniformLocation(mlxctx->shaderprogram, "Texture15"), 15);

    return (true);
}

Here is the caller graph for this function:

mlx_init()

mlx_t * mlx_init	(	int32_t	width,
		int32_t	height,
		const char *	title,
		bool	resize
	)

Initializes a new MLX42 Instance.

Parameters

[in]	width	The width of the window.
[in]	height	The height of the window.
[in]	title	The title of the window.
[in]	resize	Enable window resizing.

Returns

Ptr to the MLX handle or null on failure.

Definition at line 164 of file mlx_init.c.

{
    MLX_NONNULL(title);
    MLX_ASSERT(width > 0, "Window width must be positive");
    MLX_ASSERT(height > 0, "Window height must be positive");

    bool init;
    mlx_t* mlx;
    if (!(init = glfwInit()))
        return ((void*)mlx_error(MLX_GLFWFAIL));
    if (!(mlx = calloc(1, sizeof(mlx_t))))
        return ((void*)mlx_error(MLX_MEMFAIL));
    if (!(mlx->context = calloc(1, sizeof(mlx_ctx_t))))
        return (free(mlx), (void*)mlx_error(MLX_MEMFAIL));

    mlx_ctx_t* const mlxctx = mlx->context;
    mlx->window = NULL;
    mlx->width = width;
    mlx->height = height;
    mlxctx->initialWidth = width;
    mlxctx->initialHeight = height;

    // NOTE(W2): For emscripten, this value will be ignored anyway.
    glfwWindowHint(GLFW_OPENGL_PROFILE, GLFW_OPENGL_CORE_PROFILE);
#ifdef EMSCRIPTEN
    glfwWindowHint(GLFW_CONTEXT_VERSION_MAJOR, 2);
    glfwWindowHint(GLFW_CONTEXT_VERSION_MINOR, 0);
    glfwWindowHint(GLFW_DECORATED, GLFW_TRUE);
    glfwWindowHint(GLFW_VISIBLE, GLFW_TRUE);
    glfwWindowHint(GLFW_CLIENT_API, GLFW_OPENGL_ES_API);
#else
    glfwWindowHint(GLFW_CONTEXT_VERSION_MAJOR, 3);
    glfwWindowHint(GLFW_CONTEXT_VERSION_MINOR, 3);
    glfwWindowHint(GLFW_MAXIMIZED, mlx_settings[MLX_MAXIMIZED]);
    glfwWindowHint(GLFW_DECORATED, mlx_settings[MLX_DECORATED]);
    glfwWindowHint(GLFW_VISIBLE, !mlx_settings[MLX_HEADLESS]);
#endif
#ifdef __APPLE__
    glfwWindowHint(GLFW_OPENGL_FORWARD_COMPAT, GL_TRUE);
#endif
    glfwWindowHint(GLFW_RESIZABLE, resize ? GLFW_TRUE : GLFW_FALSE);
    if (!(mlx->window = glfwCreateWindow(width, height, title, mlx_settings[MLX_FULLSCREEN] ? glfwGetPrimaryMonitor() : NULL, NULL)))
        return (glfwTerminate(), (void*)mlx_error(MLX_WINFAIL));
    if (!mlx_init_render(mlx) || !mlx_create_buffers(mlx))
        return (mlx_terminate(mlx), NULL);
    glfwMakeContextCurrent(mlx->window);
    return (mlx);
}

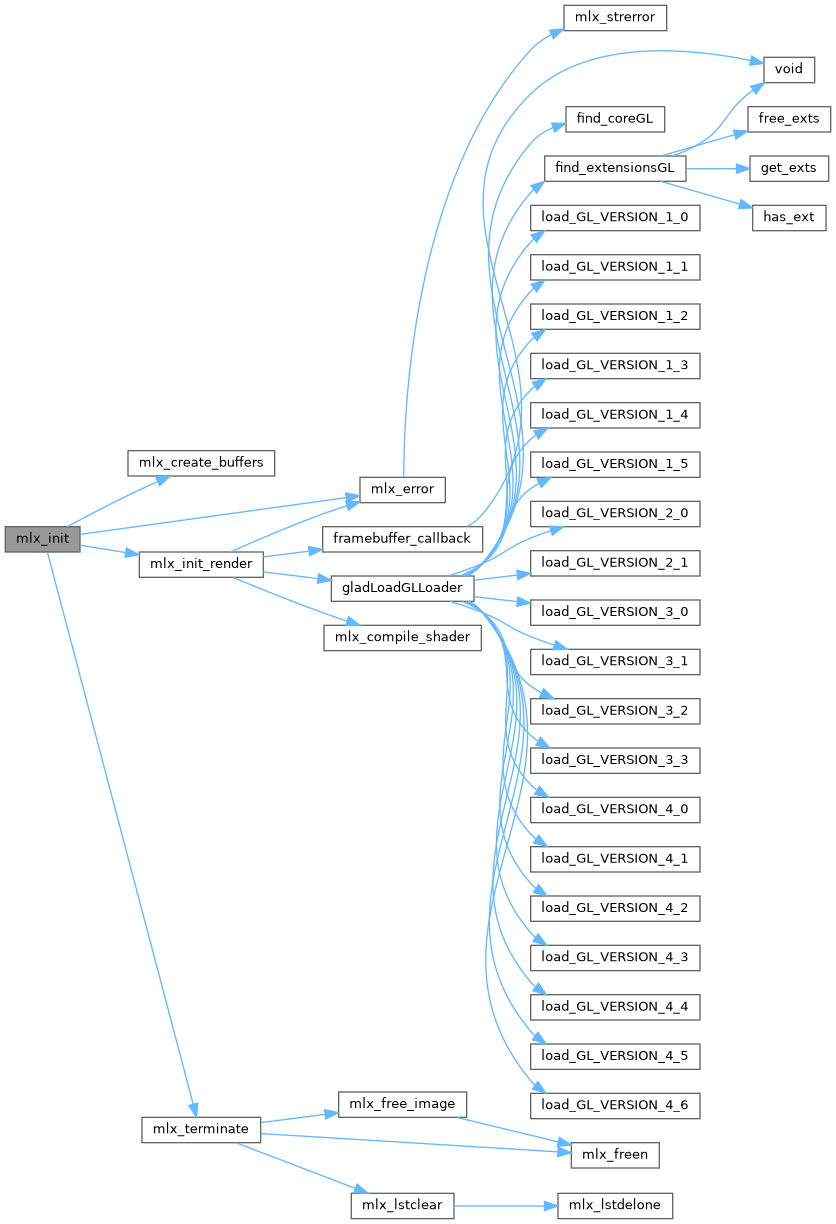

Here is the call graph for this function:

Here is the caller graph for this function:

mlx_init_render()

static bool mlx_init_render ( mlx_t *  mlx )

static

Definition at line 101 of file mlx_init.c.

{
    uint32_t vshader = 0;
    uint32_t fshader = 0;
    char infolog[512] = {0};
    mlx_ctx_t* mlxctx = mlx->context;

    glfwMakeContextCurrent(mlx->window);
    glfwSetFramebufferSizeCallback(mlx->window, framebuffer_callback);
    glfwSetWindowUserPointer(mlx->window, mlx);
    glfwSwapInterval(MLX_SWAP_INTERVAL);

    // Load all OpenGL function pointers
    if (!gladLoadGLLoader((GLADloadproc)glfwGetProcAddress))
        return (mlx_error(MLX_GLADFAIL));
    if (!(vshader = mlx_compile_shader(vert_shader, GL_VERTEX_SHADER)))
        return (mlx_error(MLX_VERTFAIL));
    if (!(fshader = mlx_compile_shader(frag_shader, GL_FRAGMENT_SHADER)))
        return (mlx_error(MLX_FRAGFAIL));;
    if (!(mlxctx->shaderprogram = glCreateProgram()))
    {
        glDeleteShader(fshader);
        glDeleteShader(vshader);
        return (mlx_error(MLX_SHDRFAIL));
    }
    glAttachShader(mlxctx->shaderprogram, vshader);
    glAttachShader(mlxctx->shaderprogram, fshader);
    glLinkProgram(mlxctx->shaderprogram);

    int32_t success;
    glGetProgramiv(mlxctx->shaderprogram, GL_LINK_STATUS, &success);
    if (!success)
    {
        glGetProgramInfoLog(mlxctx->shaderprogram, sizeof(infolog), NULL, infolog);
        fprintf(stderr, "%s", infolog);
        glDeleteProgram(mlxctx->shaderprogram);
        glDeleteShader(vshader);
        glDeleteShader(fshader);
        return (mlx_error(MLX_SHDRFAIL));
    }

    // Detach shaders after linking but before deleting them
    glDetachShader(mlxctx->shaderprogram, vshader);
    glDetachShader(mlxctx->shaderprogram, fshader);

    // Delete shaders
    glDeleteShader(vshader);
    glDeleteShader(fshader);
    glUseProgram(mlxctx->shaderprogram);
    for (size_t i = 0; i < 16; i++)
        mlxctx->bound_textures[i] = 0;
    return (true);
}

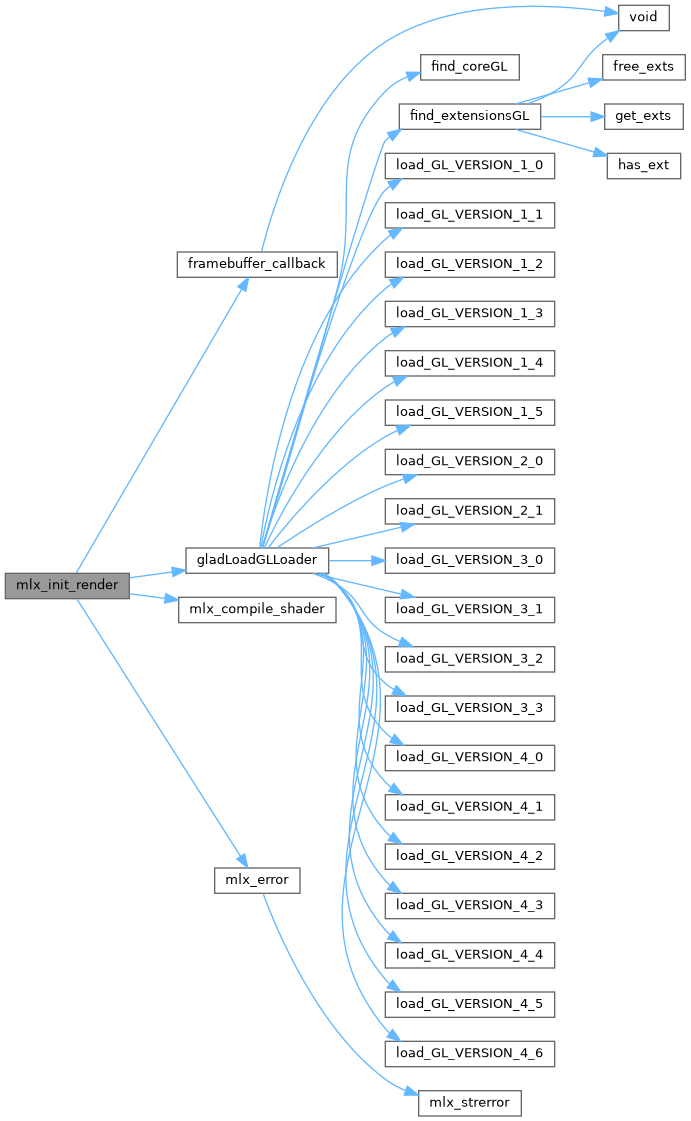

Here is the call graph for this function:

Here is the caller graph for this function:

mlx_set_setting()

void mlx_set_setting	(	mlx_settings_t	setting,
		int32_t	value
	)

Set a setting for MLX42. Settings can manipulate the core behaviour of the engine.

Parameters

[in]	setting	The settings value, See mlx_settings_t type.
[in]	value	Settings value to determine the state of the setting. Can be a boolean or an enum / macro.

Definition at line 213 of file mlx_init.c.

{
    MLX_ASSERT(setting >= 0 && setting < MLX_SETTINGS_MAX, "Invalid settings value");
    mlx_settings[setting] = value;
}

Here is the caller graph for this function:

Variable Documentation

mlx_errno

mlx_errno_t mlx_errno = MLX_SUCCESS

Definition at line 161 of file mlx_init.c.

mlx_settings

int32_t mlx_settings[MLX_SETTINGS_MAX] = {false, false, false, true, false}

Definition at line 160 of file mlx_init.c.

{false, false, false, true, false};

sort_queue

bool sort_queue = false

Definition at line 162 of file mlx_init.c.
