mlx_put_pixel.c File Reference

#include "MLX42/MLX42_Int.h"

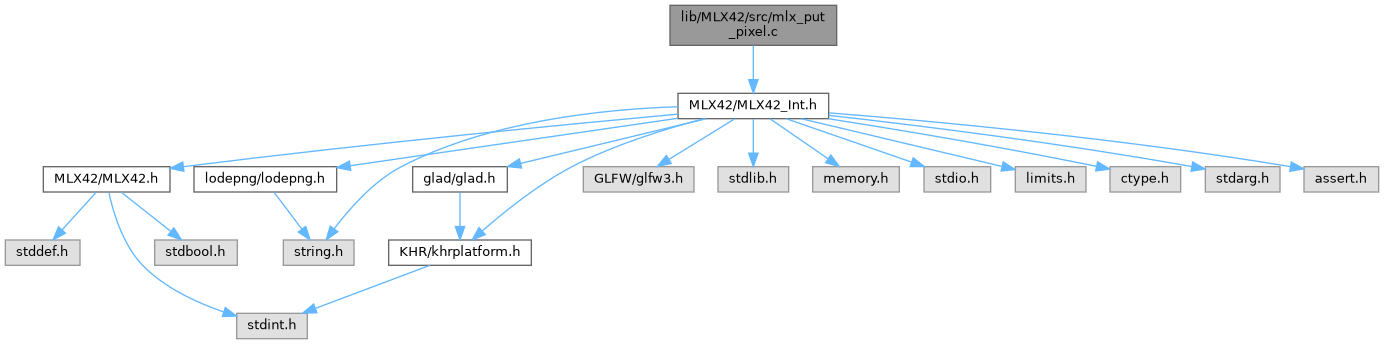

Include dependency graph for mlx_put_pixel.c:

Go to the source code of this file.

Functions
void	mlx_draw_pixel (uint8_t *pixel, uint32_t color)
void	mlx_put_pixel (mlx_image_t *image, uint32_t x, uint32_t y, uint32_t color)

Function Documentation

mlx_draw_pixel()

void mlx_draw_pixel	(	uint8_t *	pixel,
		uint32_t	color
	)

Definition at line 16 of file mlx_put_pixel.c.

{
    *(pixel++) = (uint8_t)(color >> 24);
    *(pixel++) = (uint8_t)(color >> 16);
    *(pixel++) = (uint8_t)(color >> 8);
    *(pixel++) = (uint8_t)(color & 0xFF);
}

Here is the caller graph for this function:

mlx_put_pixel()

void mlx_put_pixel	(	mlx_image_t *	image,
		uint32_t	x,
		uint32_t	y,
		uint32_t	color
	)

Sets / puts a pixel onto an image.

NOTE: It is considered undefined behaviour when putting a pixel beyond the bounds of an image.

Parameters

[in]	image	The MLX instance handle.
[in]	x	The X coordinate position.
[in]	y	The Y coordinate position.
[in]	color	The color value to put.

Definition at line 26 of file mlx_put_pixel.c.

{
    MLX_NONNULL(image);
    MLX_ASSERT(x < image->width, "Pixel is out of bounds");
    MLX_ASSERT(y < image->height, "Pixel is out of bounds");

    uint8_t* pixelstart = &image->pixels[(y * image->width + x) * BPP];
    mlx_draw_pixel(pixelstart, color);
}

Here is the call graph for this function:
