mlx_window.c File Reference

#include "MLX42/MLX42_Int.h"

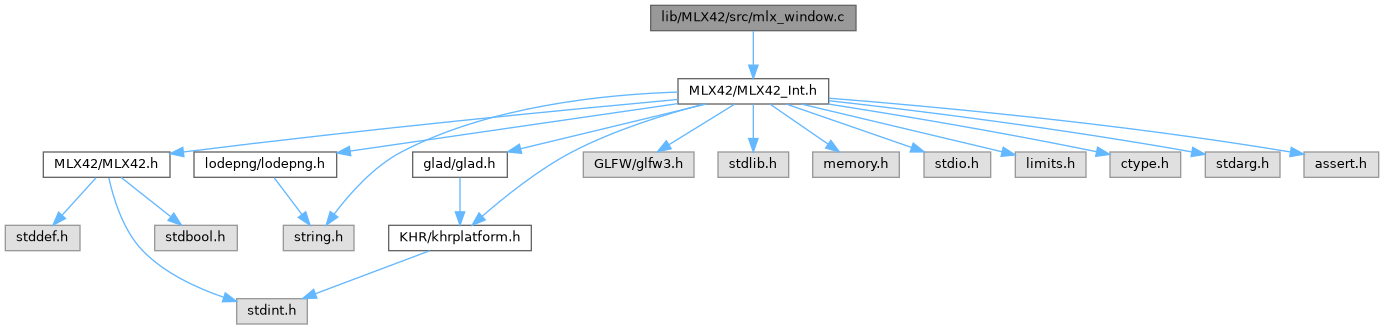

Include dependency graph for mlx_window.c:

Go to the source code of this file.

Functions
void	mlx_update_matrix (const mlx_t *mlx)
static void	mlx_resize_callback (GLFWwindow *window, int32_t width, int32_t height)
static void	mlx_close_callback (GLFWwindow *window)
void	mlx_close_hook (mlx_t *mlx, mlx_closefunc func, void *param)
void	mlx_resize_hook (mlx_t *mlx, mlx_resizefunc func, void *param)
void	mlx_set_icon (mlx_t *mlx, mlx_texture_t *image)
void	mlx_set_window_pos (mlx_t *mlx, int32_t xpos, int32_t ypos)
void	mlx_get_window_pos (mlx_t *mlx, int32_t *xpos, int32_t *ypos)
void	mlx_set_window_size (mlx_t *mlx, int32_t new_width, int32_t new_height)
void	mlx_set_window_limit (mlx_t *mlx, int32_t min_w, int32_t min_h, int32_t max_w, int32_t max_h)
void	mlx_set_window_title (mlx_t *mlx, const char *title)

Function Documentation

mlx_close_callback()

static void mlx_close_callback ( GLFWwindow *  window )

static

Definition at line 53 of file mlx_window.c.

{
    const mlx_t* mlx = glfwGetWindowUserPointer(window);
    const mlx_close_t close_hook = ((mlx_ctx_t*)mlx->context)->close_hook;

    close_hook.func(close_hook.param);
}

Here is the caller graph for this function:

mlx_close_hook()

void mlx_close_hook	(	mlx_t *	mlx,
		mlx_closefunc	func,
		void *	param
	)

This function sets the close callback, which is called in attempt to close the window device such as a close window widget used in the window bar.

Parameters

[in]	mlx	The MLX instance handle.
[in]	func	The close callback function.
[in]	param	An additional optional parameter.

Definition at line 63 of file mlx_window.c.

{
    MLX_NONNULL(mlx);
    MLX_NONNULL(func);

    mlx_ctx_t* mlxctx = mlx->context;
    mlxctx->close_hook.func = func;
    mlxctx->close_hook.param = param;
    glfwSetWindowCloseCallback(mlx->window, mlx_close_callback);
}

Here is the call graph for this function:

mlx_get_window_pos()

void mlx_get_window_pos	(	mlx_t *	mlx,
		int32_t *	xpos,
		int32_t *	ypos
	)

Gets the window's position.

Parameters

[in]	mlx	The MLX instance handle.
[out]	xpos	The x position.
[out]	ypos	The y position.

Definition at line 106 of file mlx_window.c.

{
    MLX_NONNULL(mlx);
    MLX_NONNULL(xpos);
    MLX_NONNULL(ypos);

    glfwGetWindowPos(mlx->window, xpos, ypos);
}

mlx_resize_callback()

static void mlx_resize_callback ( GLFWwindow *  window, int32_t  width, int32_t  height  )

static

Definition at line 44 of file mlx_window.c.

{
    const mlx_t* mlx = glfwGetWindowUserPointer(window);
    const mlx_ctx_t* mlxctx = mlx->context;

    if (mlxctx->resize_hook.func)
        mlxctx->resize_hook.func(width, height, mlxctx->resize_hook.param);
}

Here is the caller graph for this function:

mlx_resize_hook()

void mlx_resize_hook	(	mlx_t *	mlx,
		mlx_resizefunc	func,
		void *	param
	)

This function sets the resize callback, which is called when the window is resized

Parameters

[in]	mlx	The MLX instance handle.
[in]	func	The resize callback function.
[in]	param	An additional optional parameter.

Definition at line 74 of file mlx_window.c.

{
    MLX_NONNULL(mlx);
    MLX_NONNULL(func);

    mlx_ctx_t* mlxctx = mlx->context;
    mlxctx->resize_hook.func = func;
    mlxctx->resize_hook.param = param;
    glfwSetWindowSizeCallback(mlx->window, mlx_resize_callback);
}

Here is the call graph for this function:

mlx_set_icon()

void mlx_set_icon	(	mlx_t *	mlx,
		mlx_texture_t *	image
	)

Lets you set a custom image as the program icon.

NOTE: In MacOS this function does nothing, you should use the bundles icon to set the dock bar icon.

See also

: https://9to5mac.com/2021/11/08/change-mac-icons/

: https://github.com/glfw/glfw/issues/2041

Parameters

[in]	mlx	The MLX instance handle.
[in]	image	The image to use as icon.

Definition at line 85 of file mlx_window.c.

{
    MLX_NONNULL(mlx);
    MLX_NONNULL(image);

    const GLFWimage icon = {
        .width = image->width,
        .height = image->height,
        .pixels = image->pixels
    };

    glfwSetWindowIcon(mlx->window, 1, &icon);
}

mlx_set_window_limit()

void mlx_set_window_limit	(	mlx_t *	mlx,
		int32_t	min_w,
		int32_t	min_h,
		int32_t	max_w,
		int32_t	max_h
	)

Sets the size limits of the specified window. Will force the window to not be resizable past or below the given values.

Pass -1 for no limit to any of the min/max parameters to ignore that boundary. For instance if you want a min window size but the max window size can be whatever.

Parameters

[in]	mlx	The MLX instance handle.
[in]	min_w	The min width of the window.
[in]	max_w	The max width of the window.
[in]	min_h	The min height of the window.
[in]	max_h	The max height of the window.

Definition at line 124 of file mlx_window.c.

{
    MLX_NONNULL(mlx);

    glfwSetWindowSizeLimits(mlx->window, min_w, min_h, max_w, max_h);
}

mlx_set_window_pos()

void mlx_set_window_pos	(	mlx_t *	mlx,
		int32_t	xpos,
		int32_t	ypos
	)

Sets the window's position.

Do not use this function to move an already visible window unless you have very good reasons for doing so, as it will confuse and annoy the user.

Parameters

[in]	mlx	The MLX instance handle.
[in]	xpos	The x position.
[in]	ypos	The y position.

Definition at line 99 of file mlx_window.c.

{
    MLX_NONNULL(mlx);

    glfwSetWindowPos(mlx->window, xpos, ypos);
}

mlx_set_window_size()

void mlx_set_window_size	(	mlx_t *	mlx,
		int32_t	new_width,
		int32_t	new_height
	)

Changes the window size to the newly specified values. Use this to update the window width and height values in the mlx handle.

Parameters

[in]	mlx	The MLX instance handle.
[in]	new_width	The new desired width.
[in]	new_height	The new desired height.

Definition at line 115 of file mlx_window.c.

{
    MLX_NONNULL(mlx);

    mlx->width = new_width;
    mlx->height = new_height;
    glfwSetWindowSize(mlx->window, new_width, new_height);
}

mlx_set_window_title()

void mlx_set_window_title	(	mlx_t *	mlx,
		const char *	title
	)

Sets the title of the window.

Parameters

[in]	mlx	The MLX instance handle.
[in]	title	The window title.

Definition at line 131 of file mlx_window.c.

{
    MLX_NONNULL(mlx);
    MLX_NONNULL(title);

    glfwSetWindowTitle(mlx->window, title);
}

mlx_update_matrix()

void mlx_update_matrix

(

const mlx_t *

mlx

)

Recalculate the view projection matrix, used by images for screen pos Reference: https://bit.ly/3KuHOu1 (Matrix View Projection)

In case the setting to stretch the image is set, we maintain the width and height but not the depth.

Definition at line 21 of file mlx_window.c.

{
    const mlx_ctx_t* mlxctx = mlx->context;
    const float depth = mlxctx->zdepth;

    /**
     * In case the setting to stretch the image is set, we maintain the width and height but not
     * the depth.
     */
    const float width = mlx_settings[MLX_STRETCH_IMAGE] ? mlxctx->initialWidth : mlx->width;
    const float height = mlx_settings[MLX_STRETCH_IMAGE] ? mlxctx->initialHeight : mlx->height;

    const float matrix[16] = {
        2.f / width, 0, 0, 0,
        0, 2.f / -(height), 0, 0,
        0, 0, -2.f / (depth - -depth), 0,
        -1, -(height / -height),
        -((depth + -depth) / (depth - -depth)), 1
    };

    glUniformMatrix4fv(glGetUniformLocation(mlxctx->shaderprogram, "ProjMatrix"), 1, GL_FALSE, matrix);
}

Here is the caller graph for this function:
