mlx_image Struct Reference

#include <MLX42.h>

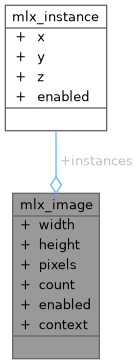

Collaboration diagram for mlx_image:

Data Fields
const uint32_t	width
const uint32_t	height
uint8_t *	pixels
mlx_instance_t *	instances
size_t	count
bool	enabled
void *	context

Detailed Description

An image with an individual buffer that can be rendered. Any value can be modified except the width/height and context.

Parameters

width	The width of the image.
height	The height of the image.
pixels	The literal pixel data.
instances	An instance carrying the X, Y and Z location data.
count	The element count of the instances array.
enabled	If true the image is drawn onto the screen, else it's not.
context	Abstracted OpenGL data.

Definition at line 340 of file MLX42.h.

Field Documentation

context

void* mlx_image::context

Definition at line 348 of file MLX42.h.

count

size_t mlx_image::count

Definition at line 346 of file MLX42.h.

enabled

bool mlx_image::enabled

Definition at line 347 of file MLX42.h.

height

const uint32_t mlx_image::height

Definition at line 343 of file MLX42.h.

instances

mlx_instance_t* mlx_image::instances

Definition at line 345 of file MLX42.h.

pixels

uint8_t* mlx_image::pixels

Definition at line 344 of file MLX42.h.

width

const uint32_t mlx_image::width

Definition at line 342 of file MLX42.h.

---

The documentation for this struct was generated from the following file:

• lib/MLX42/include/MLX42/MLX42.h
